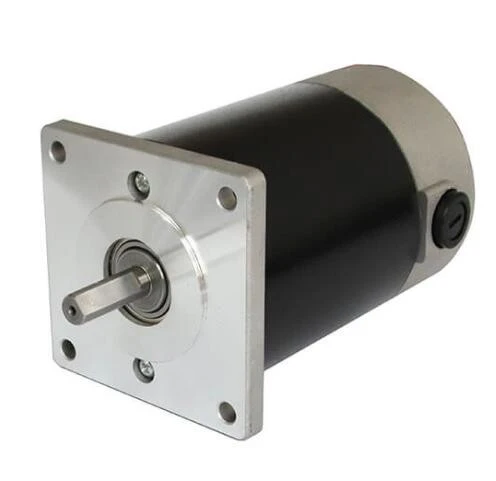

ZYT Series Standard Brush DC Motors
A brushed DC motor is a type of electric motor that operates on direct current (DC) electricity and uses brushes and a commutator to control the direction of current flow through the motor windings, allowing it to produce rotational motion.
Guangzhou Haoqing Mechanical And Electrical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of zyt series standard brush dc motors in China. Welcome to buy high-grade zyt series standard brush dc motors made in China here from our factory. All customized products are with high quality and low price.
ZYT Series Standard Brush DC Motors
What is brush dc motor?
A brushed DC motor is a type of electric motor that operates on direct current (DC) electricity and uses brushes and a commutator to control the direction of current flow through the motor windings, allowing it to produce rotational motion.
Brushed DC motor products featuring
- High quality ball bearing
- Motor size from 42mm to 90mm
- Hard ferrite magnet, 2 - poles
- IP50 IP54 IP65 protection
- -40℃~+140℃ insulation
- Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation
- Spur gearbox, worm gearbox, planetary gearbox available
Motor Datas
1：42ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP40 |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Current |
Rated Torque |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
A |
mN.m |
Rpm |
W |
mm |
Kg |
|
|
42ZYT01A |
24 (option for 12v up to 60vdc) |
3600 |
0.86 |
38 |
4200 |
14 |
70 |
0.39 |
|
42ZYT02A |
3600 |
0.98 |
43 |
4200 |
16 |
80 |
0.46 |
|
|
42ZYT03A |
3100 |
1.2 |
57 |
3800 |
18 |
85 |
0.5 |
|
|
42ZYT04A |
3600 |
1.6 |
70 |
4200 |
26 |
90 |
0.54 |
|
|
42ZYT04B |
4700 |
2.4 |
80 |
5500 |
39 |
90 |
0.54 |
|
|
42ZYT04C |
9000 |
6.0 |
100 |
10000 |
94 |
90 |
0.54 |
|
|
42ZYT05A |
3600 |
2.3 |
105 |
4200 |
39 |
115 |
0.7 |
|
|
42ZYT05B |
4500 |
4.0 |
150 |
5400 |
70 |
115 |
0.7 |
|
2：52ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
Kg |
|
|
52ZYT01A-24V |
24 (option for 12v up to 120vdc) |
3700 |
0.11 |
2.5 |
4200 |
42 |
95 |
0.85 |
|
52ZYT02A-24V |
3500 |
0.20 |
4.2 |
4200 |
73 |
110 |
1.0 |
|
|
52ZYT03A-24V |
3600 |
0.27 |
5.8 |
4200 |
102 |
125 |
1.15 |
|
|
52ZYT04A-24V |
3600 |
0.35 |
7.4 |
4200 |
132 |
140 |
1.30 |
|
3：54ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP40 |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, IP Grade,Thermal Protection,High Temperature Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
54ZYT01A-24V |
24 (option for 12v up to 120vdc) |
3200 |
0.18 |
3.5 |
3630 |
62 |
103.5 |
1.0 |
|
54ZYT02A-24V |
2580 |
0.22 |
3.3 |
2990 |
59 |
115 |
1.12 |
|
|
54ZYT03A-24V |
2770 |
0.26 |
4.3 |
3150 |
76 |
126 |
1.28 |
|
|
54ZYT04A-24V |
2810 |
0.35 |
5.8 |
3160 |
104 |
145 |
1.55 |
|
4：63ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, IP Grade,Thermal Protection,High Temperature Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
63ZYT01A |
24V(Option for 12V up to 220vdc) |
3300 |
0.14 |
2.7 |
3600 |
50 |
95 |
1.0 |
|
63ZYT01B |
4000 |
0.20 |
5.0 |
4700 |
84 |
95 |
1.0 |
|
|
63ZYT01C |
9350 |
0.24 |
13.0 |
10000 |
200 |
95 |
1.0 |
|
|
63ZYT02A |
3100 |
0.31 |
6.0 |
3600 |
100 |
110 |
1.2 |
|
|
63ZYT03A |
3000 |
0.40 |
7.5 |
3600 |
125 |
125 |
1.35 |
|
|
63ZYT03B |
4000 |
0.40 |
10.0 |
4700 |
168 |
125 |
1.35 |
|
|
63ZYT04A |
3000 |
0.50 |
9.0 |
3600 |
157 |
140 |
1.5 |
|
5：76ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, IP Grade,Thermal Protection,High Temperature Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
76ZYT01A |
24V(Option for 12V up to 220vdc) |
3300 |
0.31 |
6.0 |
3900 |
107 |
98 |
1.5 |
|
76ZYT02A |
3200 |
0.50 |
9.5 |
3800 |
167 |
118 |
2.0 |
|
|
76ZYT03A |
3200 |
0.70 |
13.0 |
3800 |
235 |
138 |
2.5 |
|
|
76ZYT04A |
3200 |
0.80 |
15.0 |
3800 |
268 |
150 |
2.8 |
|
|
76ZYT05A |
3200 |
0.90 |
16.5 |
3800 |
301 |
160 |
3.05 |
|
|
76ZYT06A |
3200 |
1.00 |
18.0 |
3800 |
335 |
171 |
3.3 |
|
6：80ZYT Series Standard Brush DC Motors
|
(Option for IP54)Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
80ZYT01A |
24V(Option for 12V up to 220vdc) |
3150 |
0.6 |
10.0 |
3600 |
200 |
120 |
2.5 |
|
80ZYT02A |
3150 |
0.8 |
13.5 |
3600 |
265 |
140 |
3.0 |
|
|
80ZYT03A |
3050 |
1.0 |
15.5 |
3500 |
320 |
160 |
3.5 |
|
|
80ZYT04A |
3050 |
1.2 |
20.0 |
3500 |
383 |
175 |
4.0 |
|
7：90ZYT Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 2 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
90ZYT-R01A |
24V(Option for 12V up to 220vdc) |
3150 |
1.2 |
21 |
3600 |
396 |
155 |
3.5 |
|
90ZYT-R02A |
3200 |
1.5 |
26 |
3600 |
503 |
180 |
4.0 |
|
|
90ZYT-R03A |
3250 |
1.8 |
31 |
3600 |
613 |
199 |
4.5 |
|
8：90ZYT-S Series Standard Brush DC Motors
|
Product Working: |
|
|
Ball bearing |
High quality ball bearing |
|
Magnet |
Hard ferrite magnet, 4 - poles |
|
Protection |
IP50(Option for IP54) |
|
Insulation |
-40℃~+140℃ |
|
Options: |
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature |
|
Motor Main Characteristics: |
||||||||
|
Model |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Current |
No Load Speed |
Output Power |
Body Length |
Weight |
|
Vdc |
Rpm |
N.m |
A |
Rpm |
W |
mm |
kg |
|
|
90ZYT-S01A |
24V(Option for 12V up to 220vdc) |
3000 |
1.5 |
26 |
3600 |
471 |
155 |
3.5 |
|
90ZYT-S01B |
1850 |
1.5 |
16 |
2300 |
290 |
155 |
3.5 |
|
|
90ZYT-S02A |
3000 |
2.2 |
37 |
3600 |
691 |
180 |
4.0 |
|
|
90ZYT-S02B |
1800 |
2.0 |
20 |
2300 |
377 |
180 |
4.0 |
|
|
90ZYT-S03A |
3000 |
3.0 |
50 |
3600 |
942 |
199 |
4.5 |
|
|
90ZYT-S03B |
1800 |
3.0 |
30 |
2300 |
565 |
199 |
4.5 |
|
