Our company, founded in 1995, is a large-scale enterprise specializing in motor manufacturing, with expertise in producing various motors and reducers. The motors produced by our company have a wide range of applications, covering almost all fields. For example, mining, machinery, steel, metallurgy, transportation, and agriculture
Motor drive is an electrical system that includes a motor. An adjustable-speed motor drive is a motor drive that has multiple operating speeds, while a variable-speed motor drive is continuously variable in speed. If the motor is generating electrical energy rather than consuming it, the motor drive could be called a generator drive, but it is often still referred to as a motor drive.
We offers the following product specifications：
|
Driver Type |

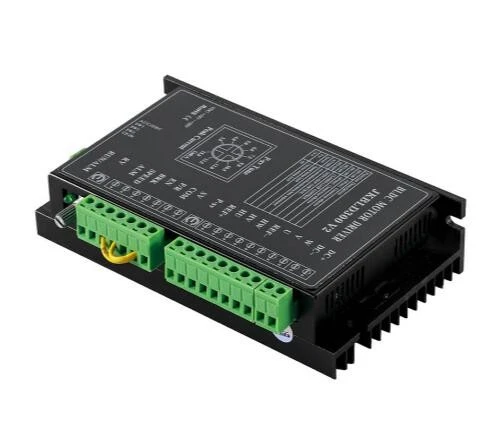

DC Brushless Motor Driver |
|
DC / AC |
DC |
|
Suitable Motor |
3-Phase DC Brushless motor |
|
Input Voltage |
12VDC - 30VDC ,Rated 24V |
|
Output Current |
Max 8A |
|
Hall signal voltage |
5V |
|
Hall drive current |
20mA |
|
Motor speed range |
0rpm - 20000rpm |
|
External potentiometer |
10kΩ |
Efficiency: Electric motor drives convert electrical energy into mechanical energy with high efficiency, typically between 85-98%. This means less energy is wasted as heat, making them more cost-effective and environmentally friendly.
Precise Control: Electric motor drives offer precise control over the speed and torque of the motor, which is important in many industrial applications. This can help improve productivity, reduce wear and tear on equipment, and ensure consistent product quality.
Low Maintenance: Electric motor drives have fewer moving parts than traditional mechanical systems, which means they require less maintenance and have a longer lifespan. This can reduce downtime and maintenance costs for businesses.
Quiet Operation: Electric motor drives operate more quietly than traditional mechanical systems, which can be beneficial in applications where noise is a concern.
Flexibility: Electric motor drives can be used in a wide range of applications and can be easily integrated with other automation systems. They can also be programmed to perform specific tasks, making them ideal for tasks that require precise control or repetitive motions.
Common types
AC Motor Controller and Drives
AC motor controllers and drives are electronic devices that modify the input power to AC motors primarily by adjusting the power supply frequency. This allows the motor’s output speed and torque to be precisely controlled.
DC Motor Controllers and Drives
DC motor controllers and drives are electrical devices that modify input power by converting a constant or alternating current source into a pulsed, direct current output. This output varies in pulse duration or frequency, enabling precise motor speed and torque control.
Servomotor Motor Controllers and Drives
Servomotor controllers and drives are advanced electronic devices that modify input power by converting a constant or alternating current source into a pulsed current output. This output varies in pulse duration or frequency, enabling precise motor speed, torque, and position control.
Power Supply Module: It provides the required current and voltage. This module delivers the necessary electrical energy to drive the motor. It ensures stable power delivery even during voltage fluctuations or load changes. Power conditioning circuits like capacitors or voltage regulators are often included for extra protection.
Pulse Width Modulation (PWM) Controller: It regulates the speed of the motor. This controller works by varying the duty cycle of pulses sent to the motor. The longer the ‘on' time relative to ‘off' time, the faster the motor spins. This method is energy-efficient and minimizes heat generation in the system.
H-Bridge Circuit: It enables motion of the DC motors in both directions. This arrangement of switches (usually MOSFETs or transistors) allows current to flow in either direction through the motor. You can easily control motor rotation and apply braking by switching these transistors in a specific pattern.
Current Control Circuit: It inhibits excessive current flow. This circuit protects both the driver and the motor from damage due to high inrush or stall currents. It can include current sensors, resistors, or smart chips that limit or cut off power during overcurrent events.
Heat Sinks/Cooling Fans: It prevents overheating during operation. Heat sinks are passive cooling components that draw heat away from the driver's power transistors. On the other hand, fans actively blow air to lower internal temperature. Effective thermal management ensures consistent performance and prevents thermal shutdowns or component failure.
Logic Control Unit: It determines the direction and behavior of the motor. This unit processes the input from microcontrollers or control systems and translates them into control signals. It coordinates speed, direction, braking, and motor enable/disable functions, often using logic gates, microcontrollers, or driver ICs.
Feedback System: It includes sensors (Hall effect, encoders) for performance monitoring. These components monitor parameters like speed, position, and torque in real time. The feedback is sent to the controller for closed-loop regulation.
Robotics: Motor drivers make the robot move, have arms, and have an autonomous driving capability. They allow precise control of motors for complex tasks like object manipulation, balancing, pathfinding, and adaptive behaviors. These also play a critical role in humanoid robots, industrial arms, and automated delivery bots.
Industrial Automation: They are used in conveyor belts, CNC machines, pick-and-place. Motor drivers enable high-precision motion and speed control in automated manufacturing processes. They help reduce errors, increase throughput, and support flexible production lines that can adapt quickly to different product designs and volumes.
Home Automation: These drivers are used in smart cleaning robots, door locks, and curtains. In smart homes, motor drivers ensure smooth and responsive movement in devices like robot vacuums, automated blinds, and electronic locks. Their role is vital in creating energy-efficient, user-friendly, and reliable home automation systems.
Electric Vehicles: They help in traction and steering systems. Motor drivers regulate torque and speed, ensuring smooth acceleration, braking, and turning. They improve energy efficiency, battery performance, and safety in electric two-wheelers, cars, and hybrid vehicles through regenerative braking and real-time control systems.
All of our machines will be fully checked by our quality control department before the shipment. We guarantee all of our machines have a one-year warranty (quick-wear parts not included).
Training details: Operation principles, system, and structure, safety and maintenance, software processing technique, etc.
Numerous feedback from our clients have proven that our machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
| Package: | Standard export package or Custom |
| Delivery: | By air express, by sea |
Guangzhou Haoqing Mechanical And Electrical Equipment Co., Ltd. is one of the most reliable motor driving system manufacturers and suppliers in China, also supports customized service. Please feel free to buy high quality motor driving system made in China here from our factory. For price consultation, contact us.
