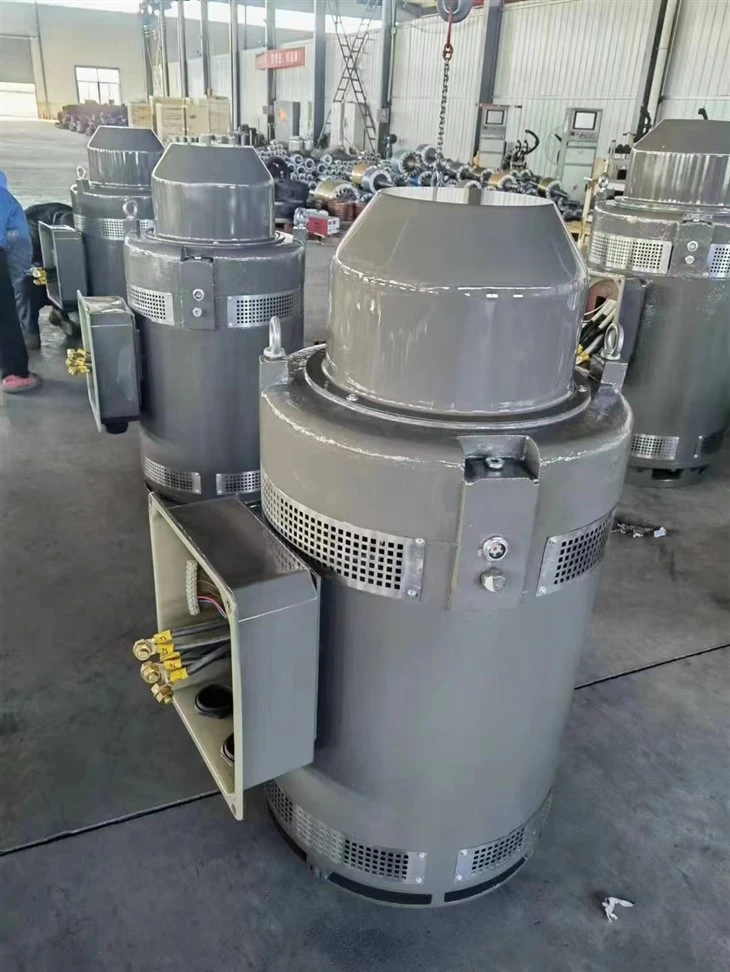

VHS Series Vertical Hollow Shaft Electric Motors
Vertical Deep Well Turbine Pump Motors
Frame Size : 215TP～5808P
Frame Type :VHS
Output Power : 10～600 HP
Rated Voltage : 230 V/ 460 V /575 V, Other Voltage Can Be Customized
Rated Frequency : 50 Hz , 60 Hz
Guangzhou Haoqing Mechanical And Electrical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of vhs series vertical hollow shaft electric motors in China. Welcome to buy high-grade vhs series vertical hollow shaft electric motors made in China here from our factory. All customized products are with high quality and low price.
|
Vertical Deep Well Turbine Pump Motors |
|
| Frame Size | 215TP～5808P |
| Frame Type | VHS |
| Output Power | 10～600 HP |
| Rated Voltage | 230 V/ 460 V /575 V, Other Voltage Can Be Customized |
| Rated Frequency | 50 Hz , 60 Hz |
| Insulation Class | F ,H |
| Duty | S1 |
| Service Factor | 1.15 |
| Protection Class | IP23 ,IP55 |
| Cooling Method |
IC411, Other Cooling Method Can Be Customized |
| Mounting | TP |
| Stator Coil | 100% Pure Copper By Vacuum Pressure Impregnation (VPI) |
| Rotor Coil | Squirrel-Cage |
|
Vertical Hollow Long Shaft |
|
Product Overview:
The VHS motor is a NEMA high-quality and high-efficiency vertical hollow shaft motor, designed to drive the Vertical Deep Well Turbine Pump. A derivative of the VHS motor is the YLB motor, with a Protection Class of IP55
Purpose: It is suitable for extracting groundwater from deep wells and can also be used for water lifting projects in rivers, reservoirs, canals, etc. The vertical motor is mainly used for farmland irrigation, water supply for people and livestock in plateau mountainous areas, as well as drainage and fire fighting in cities, factories, railways, mines, and construction sites.
For more technical data and dimensions of motors, please contact us
