Square BLDC Motors

Output Power from 26 W up to 2070 W
Motor size from 42mm to 110mm ( Nema 17 to Nema 42)
Integrated brushless servo motor (pulse / RS485 / CANopen) options
Many different shaft kinds available
Spur gearbox, worm gearbox, planetary gearbox available

Send Inquiry

Guangzhou Haoqing Mechanical And Electrical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of square bldc motors in China. Welcome to buy high-grade square bldc motors made in China here from our factory. All customized products are with high quality and low price.

Square BLDC Motor

Output Power from 26 W up to 2070 W
Motor size from 42mm to 110mm ( Nema 17 to Nema 42)
Integrated brushless servo motor (pulse / RS485 / CANopen) options
Many different shaft kinds available
Spur gearbox, worm gearbox, planetary gearbox available
Electromagnetic Brake / Encoder options
AC or DC Input Drivers

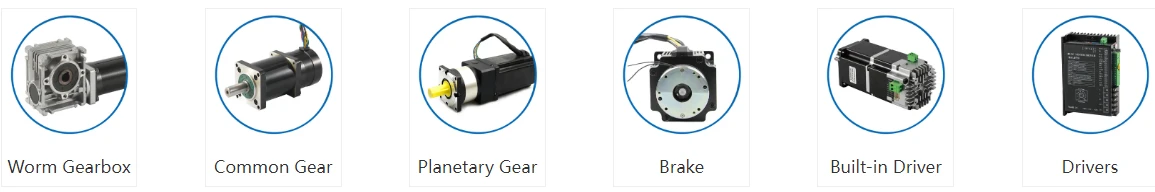

Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers

Features

No Brushes – Reduced Maintenance and Increased Lifespan
High Efficiency and Low Power Loss
High Torque-to-Weight Ratio
Precise Speed and Position Control
Quiet and Smooth Operation
Wide Speed Range and Dynamic Performance
Excellent Thermal Management Customizable Designs and Modular Configurations
Multiple Control Methods
Integration with Digital Interfaces and Sensors

Motor Datas

1：Nema17 42BLS Series Square Brushless DC Motors

Model	Phase	Poles	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Rated Power	Body Length	Rotor Inertia
Model	Phase	Poles	Vdc	Rpm	N.m	A	W	mm	g.cm²
42BLS01	3	8	24	4000	0.0625	1.8	26	41	24
42BLS02	3	8	24	4000	0.125	3.3	52.5	61	48
42BLS03	3	8	24	4000	0.185	4.8	77.5	81	72
42BLS04	3	8	24	4000	0.25	6.3	105	100	96

product-1166-604

product-575-106

2：Nema23 57BLF Series Round Brushless DC Motors

Model	Phase	Poles	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Rated Power	Body Length	Rotor Inertia
Model	Phase	Poles	Vdc	Rpm	N.m	A	W	mm	g.cm²
57BLF005	3	4	36	4000	0.055	1.2	23	37	30
57BLF01	3	4	36	4000	0.11	2.0	46	47	75
57BLF02	3	4	36	4000	0.22	3.6	92	67	119
57BLF03	3	4	36	4000	0.33	5.3	138	87	173
57BLF04	3	4	36	4000	0.44	6.8	184	107	230

product-813-481

product-575-106

3：Nema24 60BLS Series Square Brushless DC Motors

Model	Phase	Poles	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Rated Power	Body Length	Rotor Inertia
Model	Phase	Poles	Vdc	Rpm	N.m	A	W	mm	kg.cm²
60BLS01	3	8	48	3000	0.3	2.8	94	78	0.24
60BLS02	3	8	48	3000	0.6	5.2	188	99	0.48
60BLS03	3	8	48	3000	0.9	7.5	283	120	0.72
60BLS04	3	8	48	3000	1.2	9.5	377	141	0.96

product-869-376

product-575-106

4：Nema34 86BLS Series Square Brushless DC Motors

Model	Phase	Poles	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Rated Power	Body Length	Rotor Inertia
Model	Phase	Poles	Vdc	Rpm	N.m	A	W	mm	g.cm²
86BLS58	3	8	48	3000	0.35	3	110	71	400
86BLS71	3	8	48	3000	0.7	6.3	220	84.5	800
86BLS84	3	8	48	3000	1.05	9	330	98	1200
86BLS98	3	8	48	3000	1.4	11.5	440	111.5	1600
86BLS125	3	8	48	3000	2.1	18	660	138.5	2400

product-845-500

product-575-106

5：Nema42 110BLS Series Square Brushless DC Motors

Model	Phase	Poles	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Rated Power	Body Length
Model	Phase	Poles	Vdc	Rpm	N.m	A	KW	mm
110BLS50	3	8	310	3000	2.38	2.7	0.75	134
110BLS75	3	8	310	3000	3.3	3.7	1.03	159
110BLS100	3	8	310	3000	5	5.6	1.57	184
110BLS125	3	8	310	3000	6.6	7.5	2.07	209
